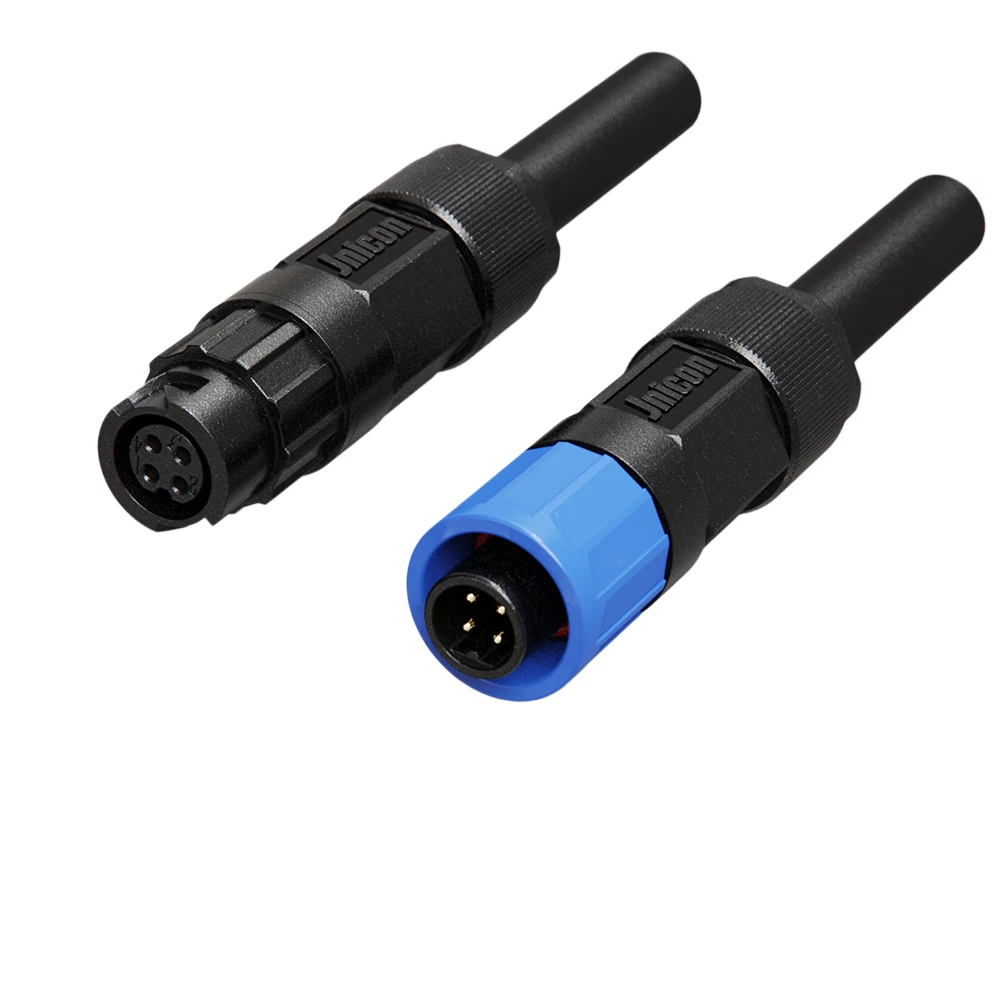

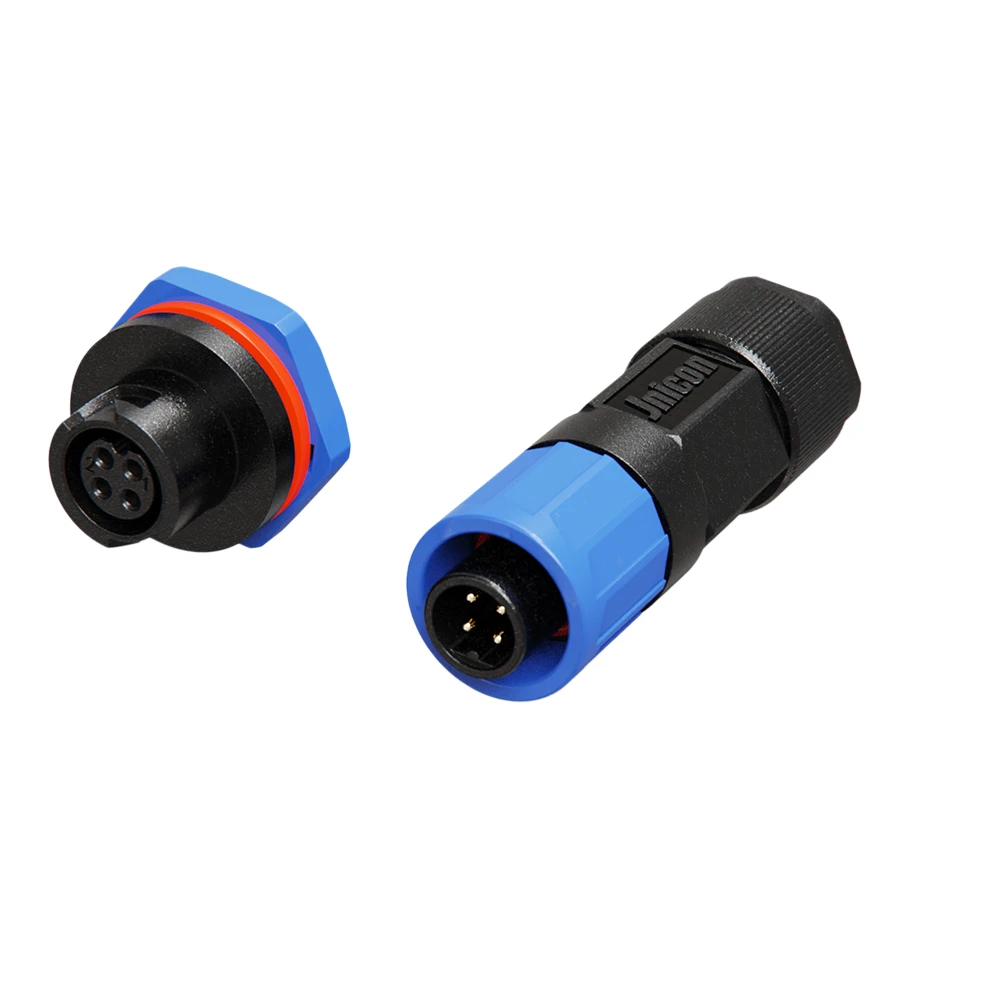

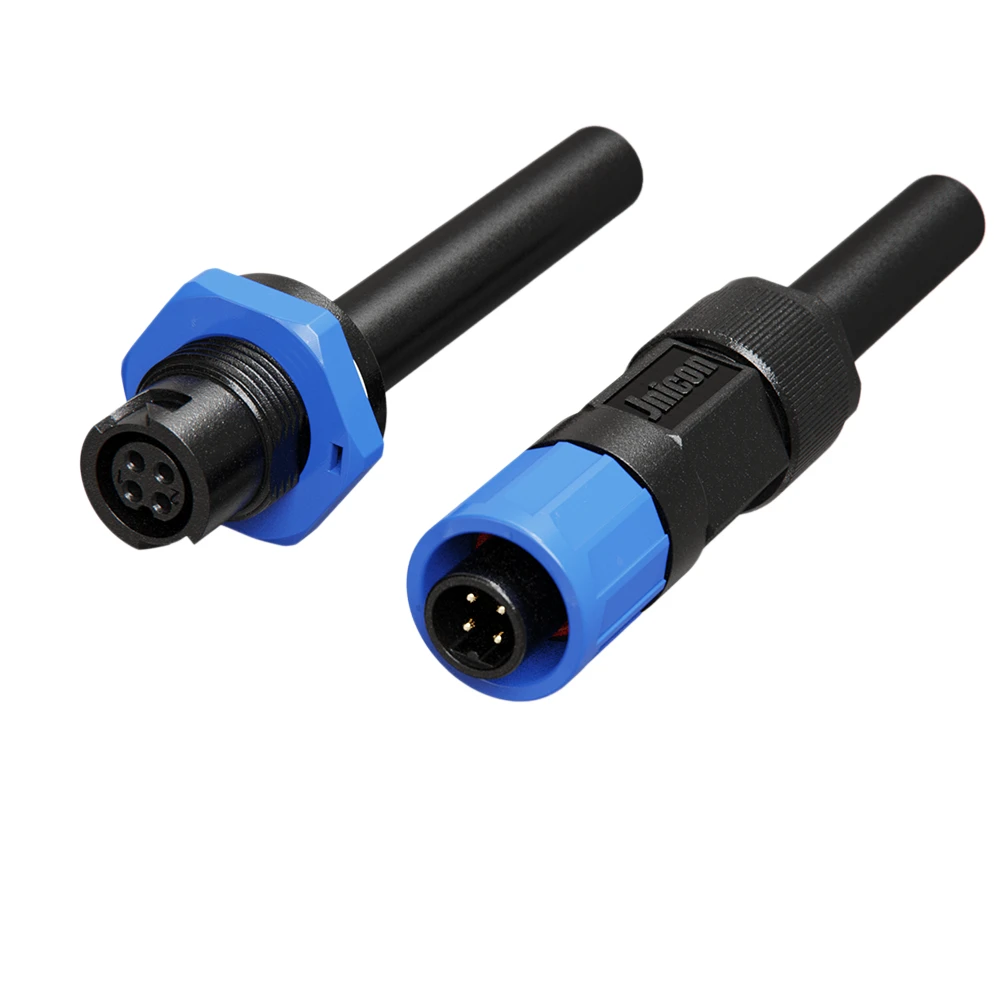

M12 4 Pin Waterproof Connector 7A Push Locking IP67 for Actuators & Sensors

7A 4 pin push-locking waterproof circular connector with IP67 rating, field installable for actuators, sensors, and automation equipment.

Get a Free Sample

Product Overview

7A Multi-Pin Power – Φ1.2mm copper alloy contacts provide 7A/300V in a compact 4-pin design for industrial devices.
Push-Locking Mechanism – Tool-free quick connect and disconnect for fast field assembly.
IP67 Waterproof – Fully sealed against water and dust, ideal for washdown processes and corrosive environments.
Cable Flexibility – Supports 0.3mm²–1.0mm² (24–18 AWG) cables with max Φ8.5mm diameter.
A-Coding Standard – Standard A-coding for sensor and actuator applications.
Global Certifications – UL, TUV, CE, and RoHS certified.

Product Specifications

Product Details	Specification 1	Specification 2	Specification 3	Specification 4
Pin number	2 Pin	3 Pin	4 Pin	5 Pin
Pin diameter X number	1.2mm	1.2mm	1.2mm	1.2+1.0mm
Current rating	7A	7A	7A	7A+2A
Voltage rating	300V	300V	300V	125V+60V
Withstanding voltage	1500V	1500V	1500V	1000V
Cable Gauge	0.3mm²-1.0mm² (24-18AWG)	0.3mm²-1.0mm² (24-18AWG)	0.3mm²-1.0mm² (24-18AWG)	0.3mm²-1.0mm² (24-18AWG)
Diameter Range	MAX φ8.5mm	MAX φ8.5mm	MAX φ8.5mm	MAX φ8.5mm
Protection Level	IP67	IP67	IP67	IP67
Connecting mode	Push Locking	Push Locking	Push Locking	Push Locking
Prevent the combustion level	UL94-V0	UL94-V0	UL94-V0	UL94-V0
Operating temperature	-40℃ – 105℃	-40℃ – 105℃	-40℃ – 105℃	-40℃ – 105℃
Certification	ISO9001, CE, UL, ROHS	ISO9001, CE, UL, ROHS	ISO9001, CE, UL, ROHS	ISO9001, CE, UL, ROHS

Resource Downloads

M12 Specification Sheet-23-9

Download

Product Advantages

High-Reliability Waterproof & Dustproof Protection

All products in our series feature high-reliability waterproof and dustproof protection. IP67 certified models withstand temporary immersion up to 1 meter for 30 minutes. IP68 certified models are designed for prolonged submersion in demanding environments (specific depth and duration refer to product datasheet). For applications requiring frequent high-pressure high-temperature washdown — such as food processing, agricultural machinery, and heavy equipment — IP69K protection is available as a customizable option.

Note: IP69K is an optional custom feature and is not standard across all models.

Wide Operating Temperature Range

Our connectors operate reliably across a broad temperature range from -40°C to +105°C (with certain energy storage series reaching up to +125°C). This ensures stable performance in extreme climates — from freezing winters to scorching summers — making them suitable for desert, snowy, high-altitude, and other harsh environmental conditions.

High-Strength Flame-Retardant Housing

The housing is constructed from high-performance engineering plastic with UL94 V-0 flame-retardant certification, ensuring self-extinguishing properties in case of fire. The structural design also provides impact resistance, protecting internal precision terminals from accidental collisions and mechanical shocks in industrial environments.

High Mating Cycle Durability

Our connectors are rated for 500+ mating cycles, validated through rigorous plug-and-unplug testing. In frequent connection and disconnection scenarios, they maintain stable contact performance and consistent electrical reliability — effectively reducing maintenance frequency and replacement costs over the product lifecycle.
