Connection options for solar equipment, auxiliary power, monitoring and storage integration. Review the exact circuit and connector ratings with JNICON; an industrial circular connector must not be assumed suitable for a high-voltage PV string or compatible with another manufacturer’s mating system.
Connectivity Solutions for Solar & Photovoltaic
Connection options for solar equipment, auxiliary power, monitoring and storage integration. Review the exact circuit and connector ratings with JNICON; an industrial circular connector must not be assumed suitable for a high-voltage PV string or compatible with another manufacturer’s mating system.
Define the real operating conditions before selecting a connector. Review the following risks with the equipment team and agree a configuration-specific qualification plan.
Separate PV string, inverter auxiliary, control and battery circuits. Confirm the exact voltage, current, insulation and mating combination for each. Similar appearance or a solar application label does not establish interchangeability or high-voltage PV qualification.
Specify sunlight, rain, condensation, ambient temperature and cable movement. Confirm protection in the required mated or capped state and request material compatibility evidence. Validate mounting, gland and cable interfaces on the installed equipment.
Control polarity, contact termination, crimp tools, tightening and maintenance procedures. Do not mate or separate energized DC interfaces unless the selected system is expressly approved for that operation. Use the equipment’s defined isolation and verification sequence.
Use these checks to move from a catalog candidate to an approved connector and cable assembly. Agree limits and evidence for the exact application.
Send the PV, auxiliary or storage circuit voltage and current, duty, wire size and insulation requirements. Ask JNICON to confirm the proposed part’s drawing and conditions of use. Do not infer 1500 V approval from a connector family description.
Inspect cable diameter, panel seals, cap condition and routing. Request applicable ingress and weathering evidence for the exact proposed assembly. Check condensation and longitudinal cable moisture separately where relevant.
Agree the contact, cable, stripping, crimp or assembly process and inspection criteria. Verify pinout and polarity before power-up. Maintain approved mating-pair records; mixing brands requires explicit compatibility evidence.
Set thermal, insulation, environmental and maintenance checks at the equipment level. Review material and certification scope with the OEM. Catalog industrial products are candidates for review, not automatic approval for PV string service.
Coordinate the connector with the equipment drawing, cable construction and service procedure. The products below are candidates for engineering review, not blanket industry approvals.

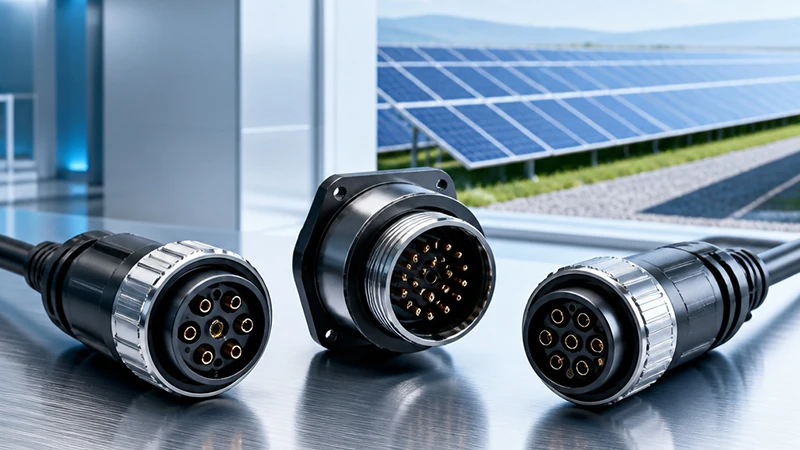

For auxiliary power, sensors and control panels, define each circuit, signal type, cable length and environmental exposure. Compare circular and molded cable options with the approved schematic. Validate electrical and environmental behavior on the complete inverter assembly.
For battery or power-conversion boundaries, confirm DC load, polarity, temperature rise, isolation and service access. JNICON can review dedicated storage and circular options against the project drawing. Keep PV string connector qualification separate from auxiliary and storage selection.
Compare these distinct JNICON catalog options against your circuit and installation. Request the current drawing, ratings and available test evidence for the exact proposed configuration.
This rubber protective cover is compatible with common circular power and signal aviation connectors. It offers two installation structures: single hole and 4-hole flange mounting. The attached lanyard prevents loss after opening, effectively blocking dust and splashing water to shield idle connector sockets from oxidation, corrosion and mechanical damage. It is a necessary supporting accessory for industrial circular connectors.
We provide fully customized wiring harness & cable assembly services, covering twisted pair wires, flat ribbon cables, double-ended terminal cables, multi-core sheathed wires, USB conversion harnesses, multi-branch loom wiring, O-type ground lug cables and customized plug connection lines. Widely applied in medical instruments, industrial automation, intelligent equipment, printing devices, motor drive systems and electronic control modules, support drawing & sample personalized OEM & ODM production.
M28 2-pin waterproof connector with an 80A current rating, bayonet locking and IP67 protection when correctly mated and assembled. For energy-storage and industrial power connections; confirm cable sizing, operating conditions and the matching connector before ordering. Request the 2-pin drawing and an OEM quotation.
20A 2 pin push-locking waterproof circular connector with IP67 rating for energy storage and high-power industrial applications.
Pre-molded 50A push-locking waterproof connector with IP67-rated cable, ready-to-use for reliable outdoor power connections in solar and energy storage systems.
Field installable 50A push-locking waterproof connector with IP67 rating, designed for on-site wiring and custom cable assembly in solar and energy storage applications.
Choose the rating from the actual exposure, not the application label alone. Ask JNICON to confirm the exact model, IP test conditions and required mated or capped state. Chemical exposure, sunlight, high-pressure cleaning and cable movement may require separate validation.
Do not assume it can. Unless the exact JNICON model is explicitly documented and approved for load breaking in the application, follow the equipment’s defined de-energization and isolation procedure before mating or disconnecting.
