Power and signal connectivity for surveillance, alarm, access-control and outdoor security equipment. JNICON can review circular connectors, Ethernet interfaces and cable assemblies against the installation drawing, data requirements and exposure conditions.
Connectivity Solutions for Security & Safety
Power and signal connectivity for surveillance, alarm, access-control and outdoor security equipment. JNICON can review circular connectors, Ethernet interfaces and cable assemblies against the installation drawing, data requirements and exposure conditions.
Define the real operating conditions before selecting a connector. Review the following risks with the equipment team and agree a configuration-specific qualification plan.
Define supply voltage, current, data protocol, cable category where relevant and protective-earth requirements. A multi-pin signal connector is not automatically an Ethernet or PoE interface. Check the complete cable channel and equipment combination.
Specify rain, humidity, UV, temperature and cleaning, including periods when ports are open. Review glands, panel seals and protective caps. Ingress performance depends on the tested connector configuration and assembly state.
Control keying, pin numbering, cable labeling and service access. Verify the installed connection before commissioning. A connector helps organize an interface but does not by itself establish system security or eliminate alarms and communication faults.
Use these checks to move from a catalog candidate to an approved connector and cable assembly. Agree limits and evidence for the exact application.
Provide power loads and the required Ethernet, serial or discrete I/O interface. Check pin mapping, cable construction and shielding as required by the protocol.
Confirm mated or capped ratings, gland diameter and panel mounting. Evaluate condensation, cable routing and maintenance exposure on the completed enclosure.
Use controlled drawings, keyed mating pairs and labeling to reduce wiring errors. Inspect locking engagement and continuity before commissioning.
Exercise the installed equipment under representative power, network and environmental conditions. Agree acceptance limits for communication behavior and service operations with the equipment team.
Coordinate the connector with the equipment drawing, cable construction and service procedure. The products below are candidates for engineering review, not blanket industry approvals.

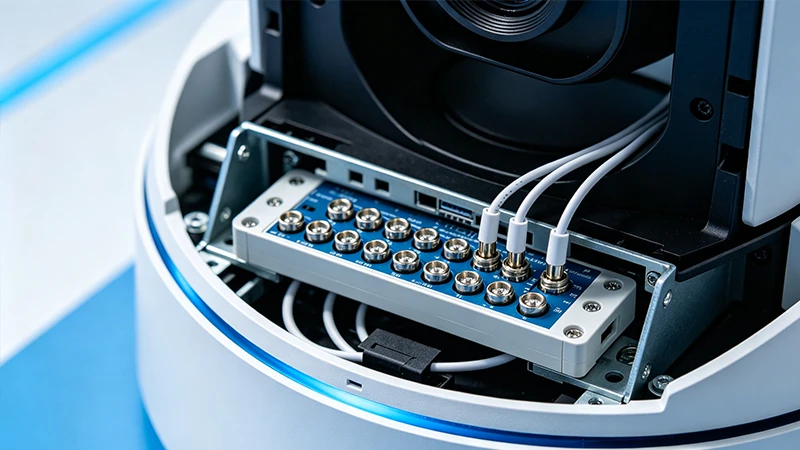

Define the power and data circuits for each node and coordinate the connector, cable length and enclosure entry. JNICON can assess industrial Ethernet and circular connector options where their specifications match the project.
For power distribution and accessible service ports, review cable support, sealing, lock retention and identification. Validate samples on the complete installation rather than assuming component ratings guarantee system uptime.
Compare these distinct JNICON catalog options against your circuit and installation. Request the current drawing, ratings and available test evidence for the exact proposed configuration.
This rubber protective cover is compatible with common circular power and signal aviation connectors. It offers two installation structures: single hole and 4-hole flange mounting. The attached lanyard prevents loss after opening, effectively blocking dust and splashing water to shield idle connector sockets from oxidation, corrosion and mechanical damage. It is a necessary supporting accessory for industrial circular connectors.
We provide fully customized wiring harness & cable assembly services, covering twisted pair wires, flat ribbon cables, double-ended terminal cables, multi-core sheathed wires, USB conversion harnesses, multi-branch loom wiring, O-type ground lug cables and customized plug connection lines. Widely applied in medical instruments, industrial automation, intelligent equipment, printing devices, motor drive systems and electronic control modules, support drawing & sample personalized OEM & ODM production.
8-pin RJ45 waterproof Ethernet connector with IP68 rating and screw locking for reliable industrial network connections in harsh environments.
10A 3 pin screw-locking waterproof circular connector with IP68 protection, available as field installable or cable-molded for power supply and automation.
5A quick-lock waterproof connector for signal transmission and sensor networks, with IP67 protection and reliable data communication.
20A quick-lock waterproof connector for security systems and landscape lighting, with IP67 protection and reliable performance.
Estimate planned maintenance, module changes, commissioning, and repair operations over the equipment's service life. Then agree on the qualification target and margin with JNICON for the exact connector pair and application. An estimated demand is not a published product rating.
Yes. An IP67 claim concerns specified ingress conditions, not the absence of moisture already inside an enclosure. Ask JNICON to confirm the connector’s rated assembly condition, while the equipment team reviews humidity and temperature cycling. Droplets alone do not prove seal leakage.
