Waterproof Electrical Connectors for Factory Automation

Unplanned downtime across automated manufacturing lines, commercial marine yards, and outdoor power infrastructure is most frequently caused by environmental failures at electrical connection points. When electrical enclosures and power feeds are exposed to high-pressure washdowns, oil mists, atmospheric humidity, or extreme temperature drops, standard commercial plugs quickly lose their dielectric resistance. Moisture ingress leads to immediate short circuits, contact pin oxidation, or sudden dielectric arc-overs that trigger breaker trips and halt entire assembly grids. For plant procurement managers, systems integration leads, and machinery design engineers, deploying validated waterproof electrical connectors is a fundamental operational necessity to preserve equipment uptime and maintain uncompromised electrical continuity.

Navigating the global supply chain for industrial interconnects requires looking beyond generic component brokers and off-the-shelf catalog distributors. Sourcing electrical sub-assemblies directly from an original component factory guarantees full control over raw polymer formulations, automated pin electroplating, and end-to-end quality tracking. By establishing direct manufacturing partnerships, plant operators can specify exact pin geometries, integrate specialized sealing elastomers, and implement custom power-and-signal hybrid layouts that operate reliably across the most severe mechanical, thermal, and chemical environments.

Industrial electrical power grids continuously subject terminal blocks and interface pins to aggressive environmental stress. To maintain stable voltage distribution and prevent current leakage, component engineers must design external housings and internal dielectric barriers that exceed basic commercial standards.

Dielectric Breakdown and Creepage Distance Engineering

In high-voltage or high-amperage industrial circuits, the primary threat posed by water ingress is dielectric breakdown. When atmospheric moisture, conductive fluid splashes, or condensation enter an unsealed housing, water forms a conductive path across the internal plastic insulation separating adjacent pins. Under electrical potential, this fluid path causes arc tracking, permanently damaging the internal plastic carrier and causing a dead short.

Preventing arc tracking requires maximizing internal creepage and clearance distances—the shortest paths along the surface of the insulator and through air between two conductive pins. High-performance industrial designs utilize molded insulation barriers between individual contact chambers. Combined with non-porous engineering polymers, these internal walls isolate electrical potential even when high humidity or conductive contaminants exist outside the sealed shell.

Environmental Defense Standards (IEC 60529 Grid)

Advanced Polymer Selection for Housing Durability

The exterior insulation shell of an industrial plug acts as its primary mechanical and chemical barrier. Leading component producers avoid low-cost commercial plastics, selecting glass-fiber reinforced Polyamide 66 (PA66) or Polybutylene Terephthalate (PBT). These engineering thermoplastics deliver high tensile strength, dimensional stability under mechanical load, and exceptional resistance to ultraviolet (UV) weathering. Industrial PA66 retains its structural shape when exposed to machine lubricants, cutting oils, hydraulic fluids, and mild acid washes, preventing surface micro-cracks that would otherwise compromise internal sealing gaskets over multi-year service cycles.

Industrial machinery grids require different electrical connectivity strategies depending on operating voltage, current amperage, and signal sensitivity. A common mistake in plant procurement is applying identical connector specifications to low-voltage control loops and high-amperage power feeds.

Low-Voltage Signal Integrity in 12V Automation Systems

Low-voltage direct current (DC) networks—specifically 12V DC circuits—power proximity sensors, automated guided vehicle (AGV) guidance tracks, digital encoder feeds, and solenoid valve drivers across modern automated plants. While low voltage reduces arc-over hazards, 12V circuits are exceptionally sensitive to contact pin oxidation caused by microscopic moisture leaks.

When ambient humidity enters an unsealed low-voltage interface, the continuous 12V DC potential accelerates electrochemical corrosion across copper contact pins. This reaction forms a non-conductive layer of copper oxide. Because the circuit operates at a low 12V potential, even a minor increase in contact resistance disrupts low-milliamp telemetry signals, causing false sensor readings or unexpected PLC safety trips.

Deploying high-integrity waterproof electrical connectors 12v eliminates signal drift through a dual-protection strategy. Internally, the contact pins undergo multi-stage electroplating, applying a dense nickel undercoat followed by a heavy gold surface plating layer. Gold remains chemically inert, maintaining minimal contact resistance across thousands of mating cycles. Externally, precision elastomeric seals isolate the junction from plant humidity.

Heavy-Duty Power Lines and Thermal Dispersal

Conversely, primary power distribution lines carry high currents up to 120A to run heavy electric motors, commercial heating banks, and power conversion racks. For these applications, engineering teams specify specialized heavy duty waterproof electrical connectors.

Beyond sealing against liquid, heavy-duty connectors must manage internal heat rise. When high current flows through a conductive pin, internal electrical resistance generates heat according to Joule's Law . High-quality heavy-duty designs utilize solid-machined copper alloy pins with optimized contact spring retention to keep resistance below 0.5 milliohms. This minimizes heat buildup and prevents the internal plastic carrier from thermal warping under full current loads.

The line between stationary factory equipment and mobile transport machinery continues to blur. Modern manufacturing facilities rely on automated guided vehicles (AGVs), electric forklift fleets, mobile cranes, and outdoor agricultural transport rigs. These mobile platforms subject electrical wiring to constant multi-axis vibration, mechanical shock, thermal swings, and exposure to road salt or petroleum products.

Standard industrial plugs often lack the secondary locking features required to survive continuous mobile equipment vibration. Unlatched plugs can back out over time, relaxing internal O-ring seals and allowing water or oil mist to seep into the contact block.

To prevent vibration-induced disconnects, systems engineers specify specialized waterproof car electrical connectors and waterproof auto electrical connectors. These specialized components combine high-impact plastic bodies with secondary locking mechanisms, such as Terminal Position Assurance (TPA) clips. TPA latches physically lock the crimped pins inside the internal housing, preventing pin backing even under severe vibration from diesel engines or rough terrain.

Furthermore, the external seals utilize fluorosilicone compounds engineered to withstand direct contact with hydraulic oil, diesel fuel, and aggressive engine degreasers without swelling or softening. To review field-tested layout architectures for mobile machinery and outdoor industrial transport grids, explore our dedicated industrial solutions directory.

Selecting the correct pin configuration is a critical step in balancing electrical capacity, component size, and cable layout complexity. Pin density dictates internal creepage spacing, insertion forces, and rear strain-relief geometry.

Single-Phase Power Delivery via 2-Pin Interfaces

The 2 pin waterproof electrical connector is a primary standard for dedicated single-phase AC power input, DC motor drives, and simple two-wire power loops. Featuring large conductive pins spaced far apart within the housing, 2-pin interfaces offer high dielectric withstand voltages and high current capacities. Because there are only two contacts, manual mating forces remain low, allowing field operators to securely lock the interface by hand.

Control and Data Lines via 4-Pin Configurations

As system complexity increases, engineers deploy 4 pin waterproof electrical connectors to handle stepper motor drives, differential sensor pairs, and low-voltage fieldbus lines. A 4-pin layout allows routing power and signal lines (e.g., V+, V-, Data+, Data-) within a single circular shell.

However, higher pin density reduces internal spacing between contacts. High-quality 4-pin designs incorporate raised plastic isolation walls between pins and utilize polarized keyway slots to prevent cross-mating during field maintenance.

Historical Application Spotlight: The M19 Series

In agricultural processing, commercial greenhouse installations, and livestock facilities, electrical components face constant high humidity, temperature changes, and corrosive ammonia vapors.

Historically, our M19 series served as a primary sales leader for horticulture and livestock photoperiod control systems. Engineered specifically to withstand organic vapors and daily high-humidity washdowns, the M19 series provided reliable, long-term environmental sealing for specialized lighting grids. To explore all mechanical dimensions and pin options for our established product lines, visit our comprehensive circular connectors catalog.

For dedicated two-pole power feeds and low-voltage lines, explore our in-depth guide on 2 pin waterproof connector selection for 12V DC grids.

Modern industrial machinery trends toward compact, space-saving designs. Traditional control panel layouts required separate connectors for heavy motor power lines and delicate encoder feedback signals. This dual-cable approach required multiple panel cutouts, increased installation time, and doubled potential leak points on machine walls.

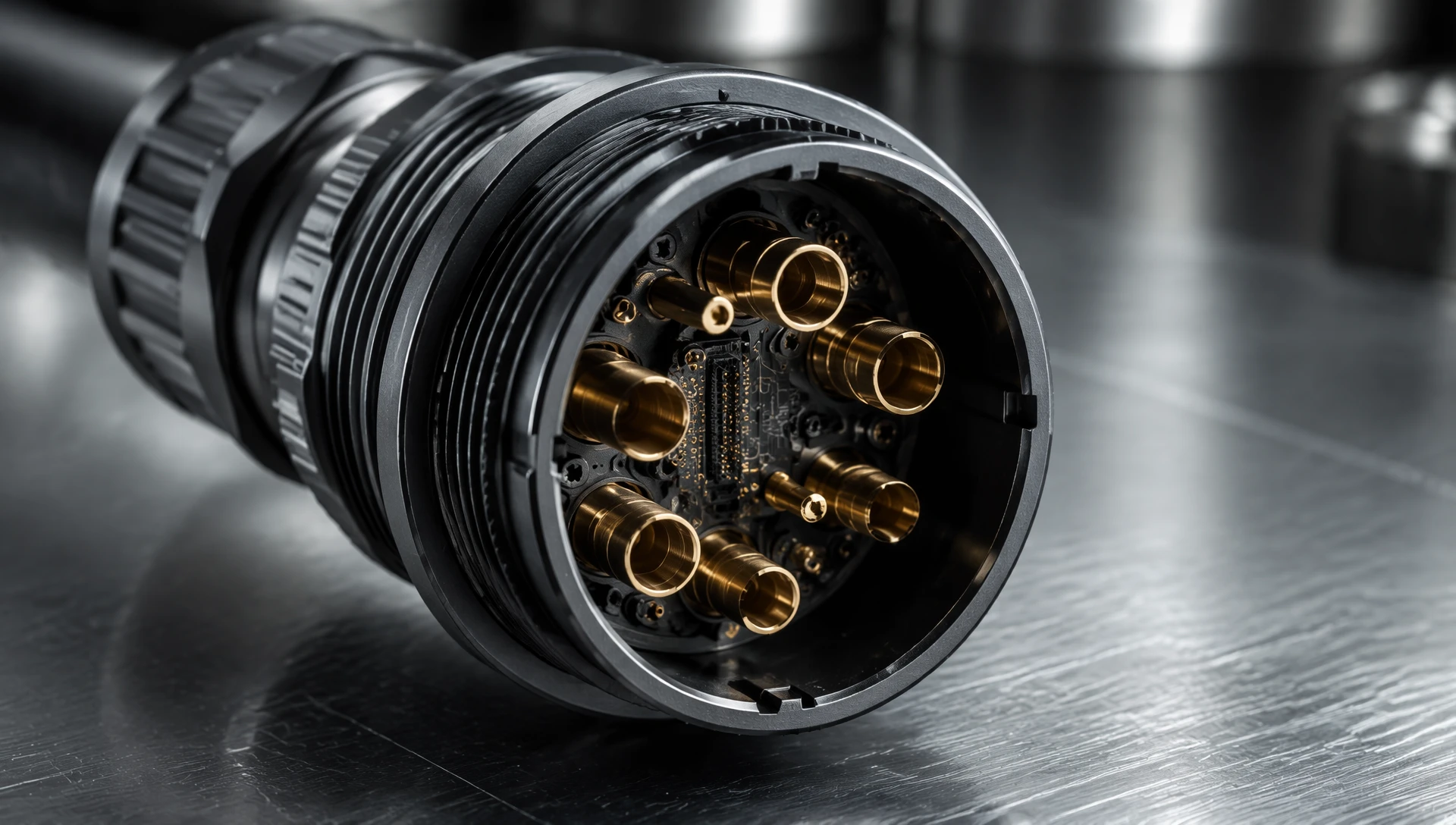

To solve these layout challenges, machinery OEMs increasingly specify custom hybrid connectors. These advanced interfaces combine high-amperage power contacts and shielded, low-voltage signal tracks within a single circular housing.

Designing custom hybrid connectors presents complex electrical and mechanical engineering challenges:

• Electromagnetic Interference (EMI) Shielding: High-current AC or DC power lines generate electromagnetic fields that can introduce noise into adjacent low-voltage sensor or encoder signals. Custom hybrid designs integrate internal metallic shielding barriers and grounded drain pins to isolate the signal compartment.

• Precision Cable Overmolding: Sealing a complex hybrid cable containing different wire gauges requires custom overmold tooling. Factory overmolding applies molten polyurethane (PUR) under monitored pressure to fully encapsulate the wire exit, forming an air-tight bond around irregular cable geometries.

Primary Focus Architecture: The M25 Modular Series

Our M25 series serves as our primary modular customization platform. It is available in standard 2-pin, 3-pin, and 5-pin power configurations, as well as specialized hybrid layouts such as 2+8 pin and 3+9 pin arrangements.

The M25 modular platform allows machine builders to route primary motor power and multi-channel encoder data through a single IP68 panel connection, simplifying machine wiring and cutting assembly time. To review modular layout configurations, browse our specialized connectors portfolio section.

Sourcing electrical components for critical industrial grids requires working with an original manufacturer that maintains rigorous quality controls and transparent factory validation procedures. Relying on unverified trading companies introduces risks of component failure if sub-assemblies lack comprehensive testing.

An authentic, high-quality component factory maintains accredited international quality management systems, specifically ISO9001 for corporate quality control, IATF16949 for automotive-grade supply chain tracking, and ISO14001 for environmental management. These audited operating procedures ensure consistent component quality across multi-year purchasing contracts.

Prior to mass delivery, production samples undergo rigorous laboratory validation:

1. High-Pressure Hydrostatic Testing: Sub-assemblies are submerged in pressurized testing vats past 1 meter depth to confirm IP68 sealing integrity.

2. Thermal Shock Cycling: Connectors are cycled between minus 40 degrees Celsius and plus 105 degrees Celsius inside environmental chambers to verify that plastic bodies do not warp or crack.

3. Salt Spray Corrosion Testing: Assembled components endure extended salt fog exposure to confirm that plating layers prevent contact oxidation.

To learn more about auditing factory quality systems and evaluating manufacturing capabilities, read our technical guides on analyzing an industrial connector manufacturer for harsh grids and our comprehensive waterproof connector sourcing guide for industrial plants.

Optimizing your facility's electrical infrastructure requires looking beyond low-cost parts and carefully evaluating a supplier's engineering capabilities, quality control systems, and raw material tracking. Sourcing components directly from a trusted manufacturing partner protects your equipment from field failures and helps stabilize your assembly line costs. The Jnicon engineering team is ready to support your business with a wide selection of standard circular connectors or completely customized hybrid cable assemblies. To request detailed technical spec sheets, arrange a digital factory audit, or receive a project quotation, connect with our support team through our direct Inquiry and Contact Portal.
